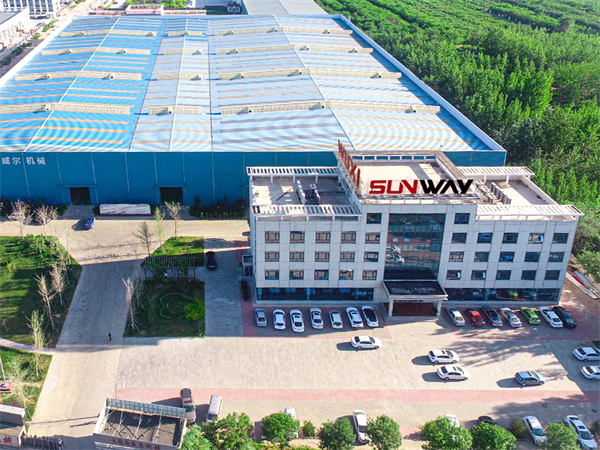

Our roll forming machine factory has been established for more than 20 years, which is the enterprise professionally manufacturing cold forming machine. Sunway has a full set of production system from researching & developing, materials purchasing, producing, inspection, packaging and exporting.
All our skilled and experienced workers, strict quality control system, excellent management team and workforce, and keen insight into this industry are designed to ensure that our products meet international standards and needs.
Showing 1–16 of 83 results

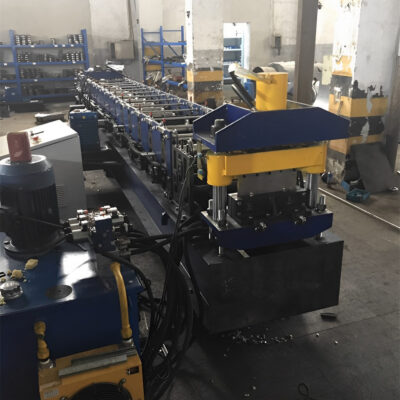

2 profile in 1 roll forming machine Summary Material: Color steel, Galvanized coil Material Thickness: 0.4-1.5mm Forming Speed: 10-15m/min 2 profile in 1 roll forming machine Main Parts Manual Decoiler Feeding Guide Roll Forming System Hydraulic Cutting PLC Control System Run-out Table Working Flowing Decoiler— Guide–Roll Forming—- cutting–Run out table 2 profile in 1 roll forming…
2 waves highway guardrail roll forming machine is a kind of highway guardrail roll forming machine. Highway Guardrail Roll Forming Machine can make W beam guardrail, thrie beam guardrail, also can be designed as two waves or three waves profiles in one machine without change roller stations.
3 waves highway guardrail roll forming machine provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment. Reduce costly damage to equipment and inventory. Normally in Highway guardrails project, there would be such machines: two/three wave guardrail roll forming machine, U or C post roll forming machine, Connection punching line, End terminal punching line.
SUNWAY design this auto changeable C Z purline machine to work with any size of the purlin, automatically adjustable sizes on PLC. Whats’ more, changing time from C to Z only need 5-10 minutes. Regarding the punching unit, we can design pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm, this is much more strong driving power and more stable when forming the purlins.
Our auto size changeable C/U purlin roll forming machine produces high-quality C and U shape purlins, with width ranging from 80-300mm and material thickness of 1.5-3mm. It’s versatile, easy to operate, and requires minimal maintenance.We offer high-quality equipment & after-sales service. Contact us for any needs/questions.
This auto size changeable C Z purlin roll forming machine is used to produce C&Z shape purlins from 100-300mm of width, normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.
This Sigma purlin roll forming machine also named M Purlin Roll Forming Machine is used to produce M shape purlins from 80-300mm of width, normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.
This Z Purlin Roll Forming Machine is used to produce Z shape purlins from 100-300mm of width, normally its material thickness is1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.

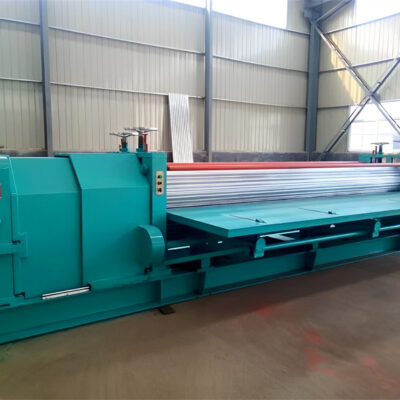

Main machine is decelerated by a main motor and driven by a gear unit for driving up and down barrel rolls. Both rolls keep meshing status by gear unit. The sheets are put on the movable platform and feeding by crank mechanism which will make sure the sheet entering into machine without any deviation. After forming, output rollers are designed to correct the corrugation height to keep it as 76 mm.

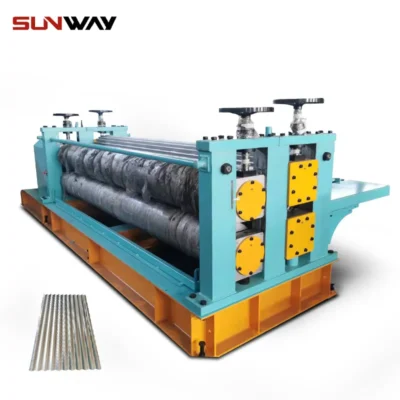

Barrel corrugated panel roll forming machine is used to produce sinusoidal wave shape panels. Normally the panel thickness is 0.12-0.3mm with FULL HARD Galvanized steel, yield strength can be up to 550Mpa even 600Mpa.

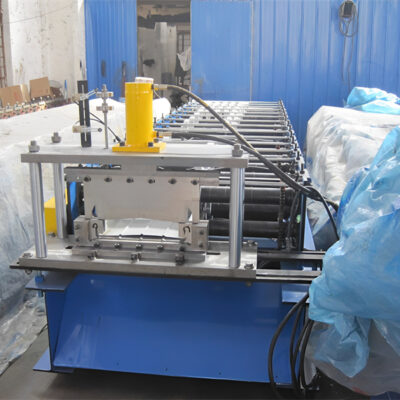

Bemo Roof Panel Roll Forming Machine Features: Bemo Roof Panel Roll Forming Machine is used to form the pre-painted sheet/GI/GA and aluminum material. It is composed of the uncoiler, guide feeder, roll forming machine, hydraulic cutting machine, PLC control system, hydraulic starion, output tables, auto seamer, and curving machine (Option) Applications The finished products are…
Box beam steel roll forming machine for shelf column is developed to produce the beam which is fixed between the upright racks. It normally has two types: 1) both C beams are roll formed on a roll forming machine then seamed in a combined roll former to get a box beam; 2) one beam is formed on a roll forming machine directly to get a box beam.
Features The C shaped purlin formed by C purlin roll forming machine has excellent anti-bending property and are easy to install. Machine adopt cast iron structure, which will increase the strength of the machine. The processing of Punching & Cutting has different type for choosing: Post-Punching & Post-Cutting, Pre-Punching & Post Cutting, Pre-Punching & Pre-Cutting….
C Bracing Section Roll Forming Machine also named C beam roll forming machine is developed to produce C beam which is for supporting the uprights rack and shelving panels at the side of the whole warehouse pallet tacking system.
Our intelligent C Bracing Section Roll Forming Machine could make various sizes of C beam according to the rack system requirements and thickness, normally 1.5-1.8mm. Uncoiling, feeding, roll forming, punching, cutting, etc. process can be automatically realized on one line. Meantime, we have the roll forming machine to make step beam, upright rack, box beam and shelf panel. All these are components of Pallet racking system.
C Z Purlin Channel Cold Roll Forming Machine adopts a special structure for both C and Z purlin making. The rollers for C & Z are changed very quickly without dismantle any parts. Cutter adopts universal hydraulic cutting device, no need to change cutter blade while producing different profiles with different sizes which save labor costs and improve production efficiency.
Cable Ladder roll forming machine also sometimes is called Ladder type Cable Tray roll forming machine. This line is commonly used to make different kinds of cable trays, which is widely used in electrical fields, decorations, industrial constructions etc.
This cable ladder roll forming line can produce 100mm to 300mm or more width cable trays and cable ladders with automatic width adjustment. Users only need to key in the width of the cable ladders, the roller stands can move in and out to adjust the gap between the rollers for various cable ladders widths. Main material can be used are cold / hot rolled steel coils with 1.0mm to 2.5mm thickness.
The main components of a C Purlin Roll Forming Machine include:
Using C purlins in construction offers several advantages:
a. Lightweight and strong: C purlins are lighter than traditional construction materials like wood or concrete, yet still provide excellent strength and durability.
b. Easy installation: C purlins can be quickly and easily installed on-site, reducing construction time and labor costs.
c. Versatility: C purlins can be used in various applications, such as roofing, wall support structures, and framing for industrial, commercial, and residential buildings.
d. Customizable: C Purlin Roll Forming Machines can produce C purlins in different sizes and thicknesses, allowing for customization to meet specific project requirements.
e. Cost-effective: C purlins are relatively inexpensive and provide long-lasting, low-maintenance solutions for various construction applications.
C Purlin Roll Forming Machines can process various materials, including:
When choosing a C Purlin Roll Forming Machine, consider the following factors:
Yes, a C Purlin Roll Forming Machine can produce C purlins in various sizes and thicknesses by adjusting the machine’s settings and parameters. This flexibility allows manufacturers to produce customized C purlins to meet specific project requirements, providing a versatile solution for a wide range of construction applications.
The production speed of a C Purlin Roll Forming Machine can vary depending on the machine’s design, material being processed, and desired purlin dimensions. However, typical production speeds range from 10 to 30 meters per minute, ensuring efficient and rapid production of C purlins for various construction applications.
Routine maintenance for a C Purlin Roll Forming Machine includes:
When operating a C Purlin Roll Forming Machine, follow these safety precautions:
When comparing different C Purlin Roll Forming Machine manufacturers, consider the following factors:
We pay meticulous attention to each detail from raw material to delivery. It is throughout our constantly effort that our customers get the consistently high level quality products they have to look for. We always make efforts to cut the cost at the same time improve the technological content of products in order to enhance the market competitiveness of the products. In the related diversification development, we increase investment and enhance development of key products and key projects continuously make breakthroughs in technology and product function, to rank at the advanced level in the market.
