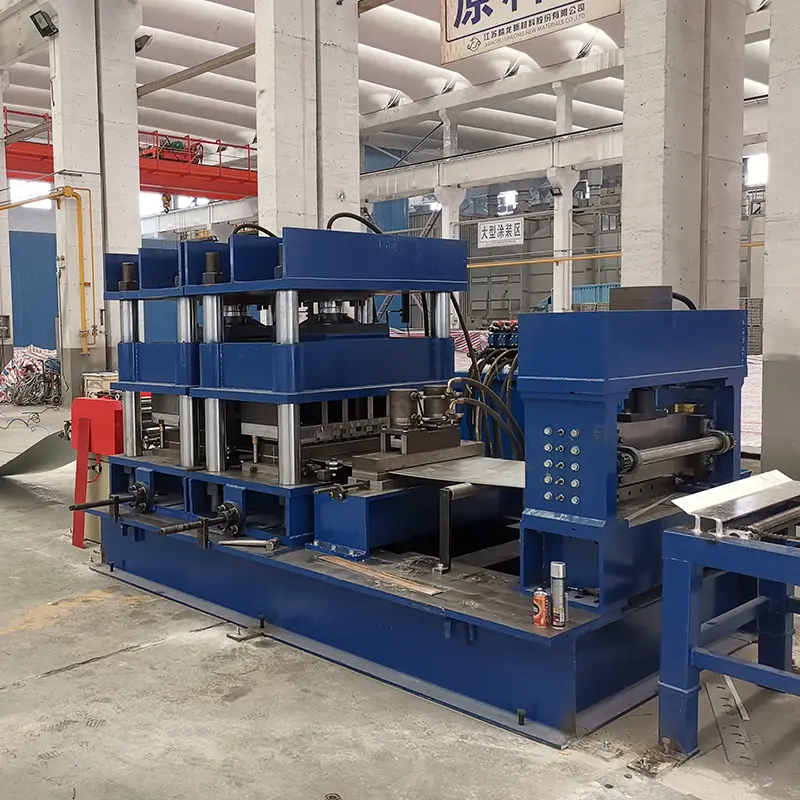

3 Waves Highway Guardrail Roll Forming Machine
3 waves highway guardrail roll forming machine provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment. Reduce costly damage to equipment and inventory. Normally in Highway guardrails project, there would be such machines: two/three wave guardrail roll forming machine, U or C post roll forming machine, Connection punching line, End terminal punching line.
Global Service
Our professional foreign traders will satisfy global businessman as customers' will.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
Share This Product
Description
Highway Guardrail Roll Forming Machine can make W beam guardrail, thrie beam guardrail, also can be designed as two waves or three waves profiles in one machine without change roller stations.
On this page, we will introduce the most popular highway guardrail making machine which is designed as two waves and three waves profiles in one machine, and the guardrail’s thickness is usually 2.7mm-4mm.
Highway guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment. Reduce costly damage to equipment and inventory. Normally in Highway guardrails project, there would be such machines: two/three wave guardrail roll forming machine, U or C post roll forming machine, Connection punching line, End terminal punching line.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

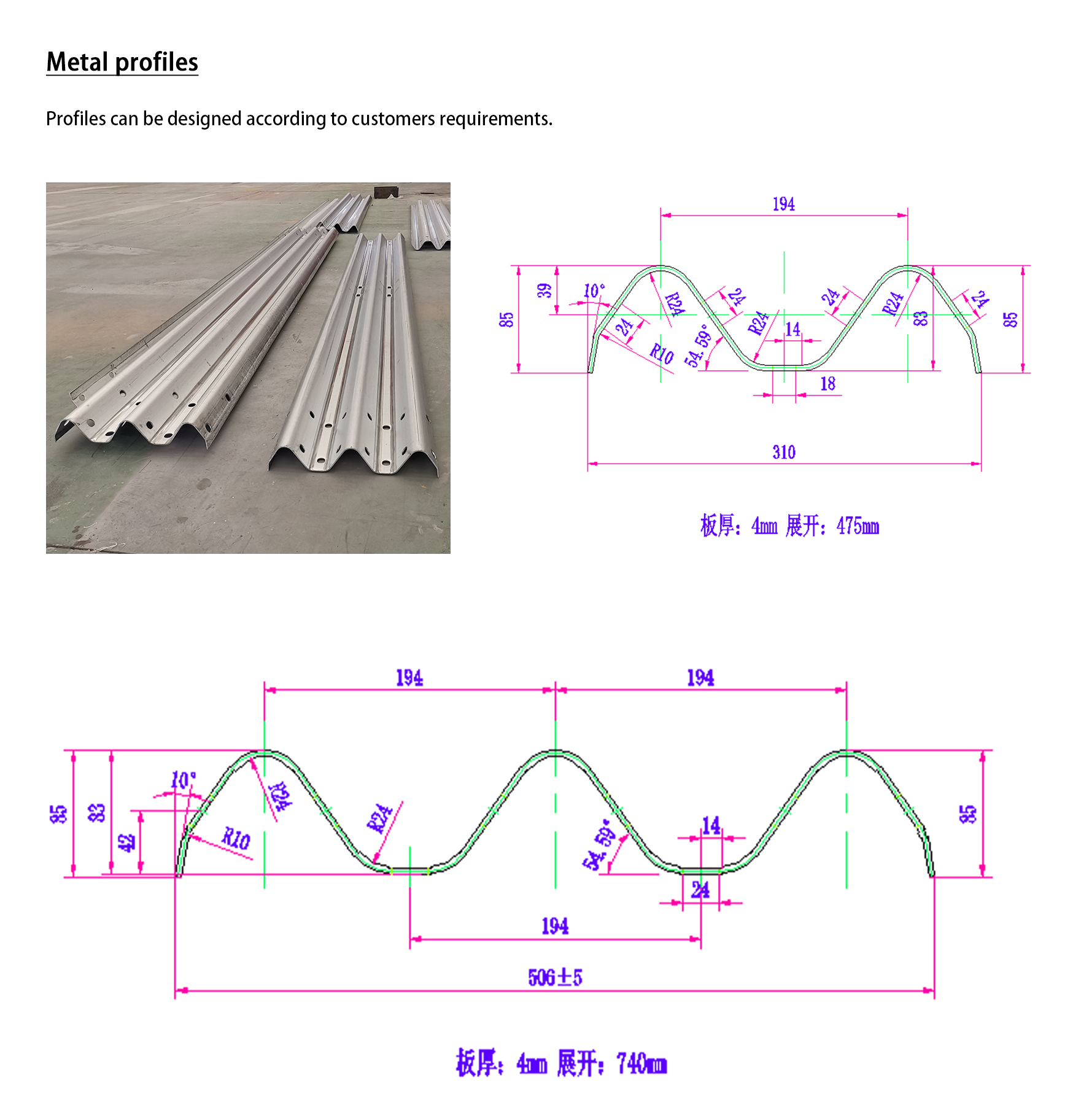

Profile Drawings

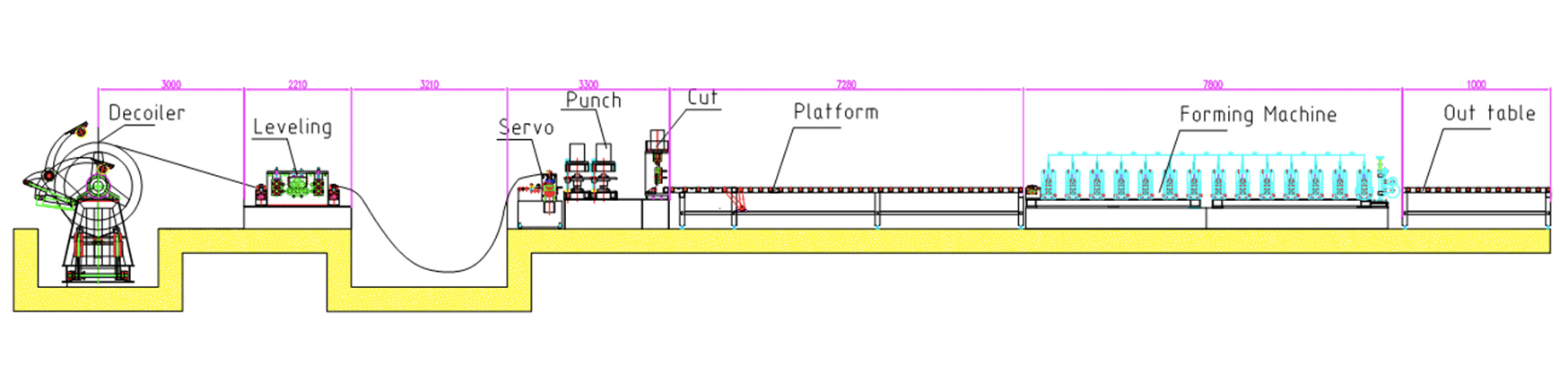

Production Line

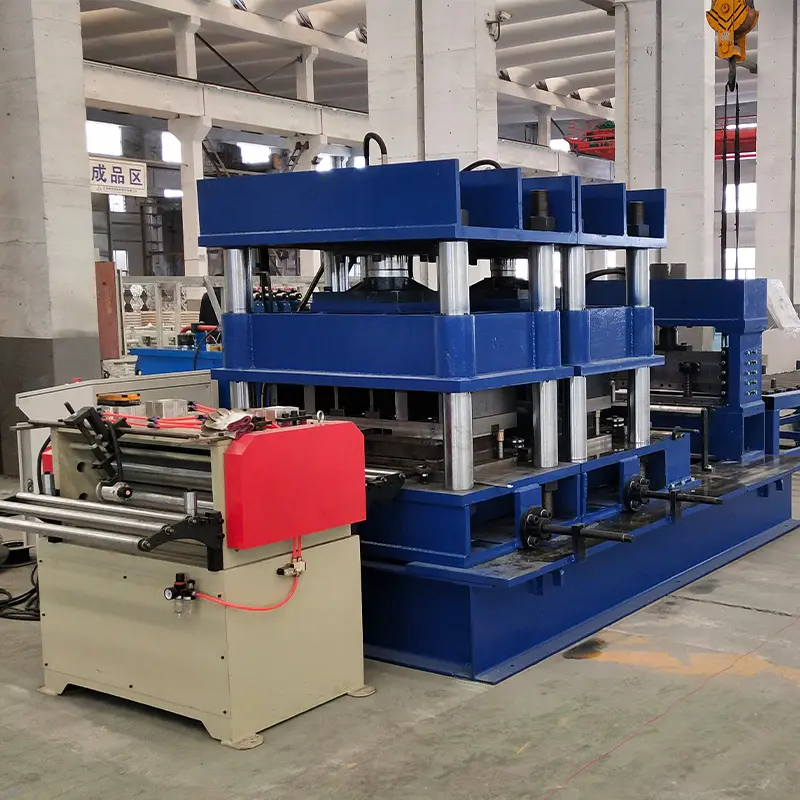

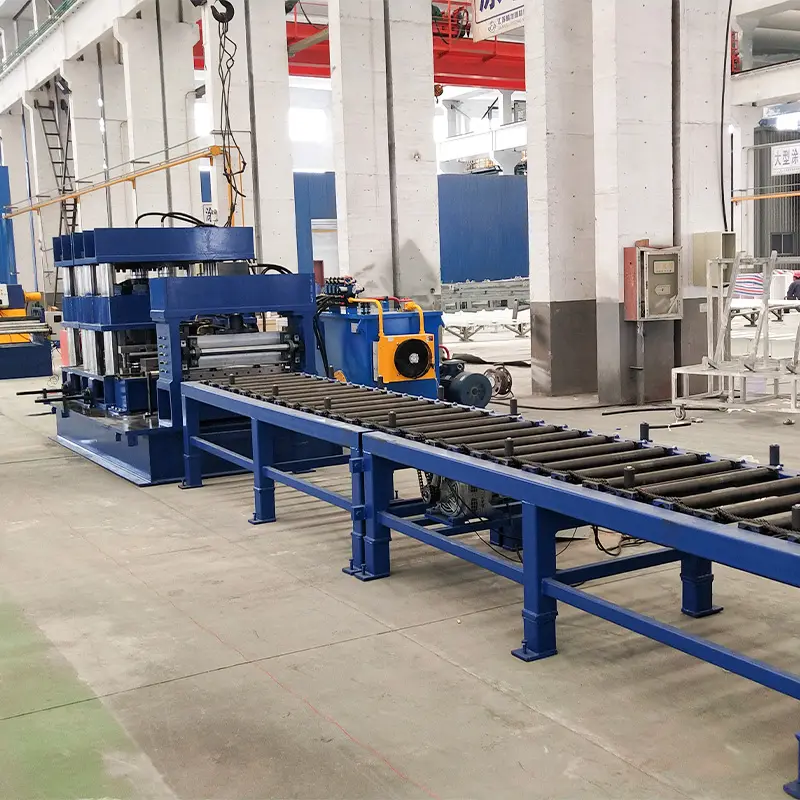

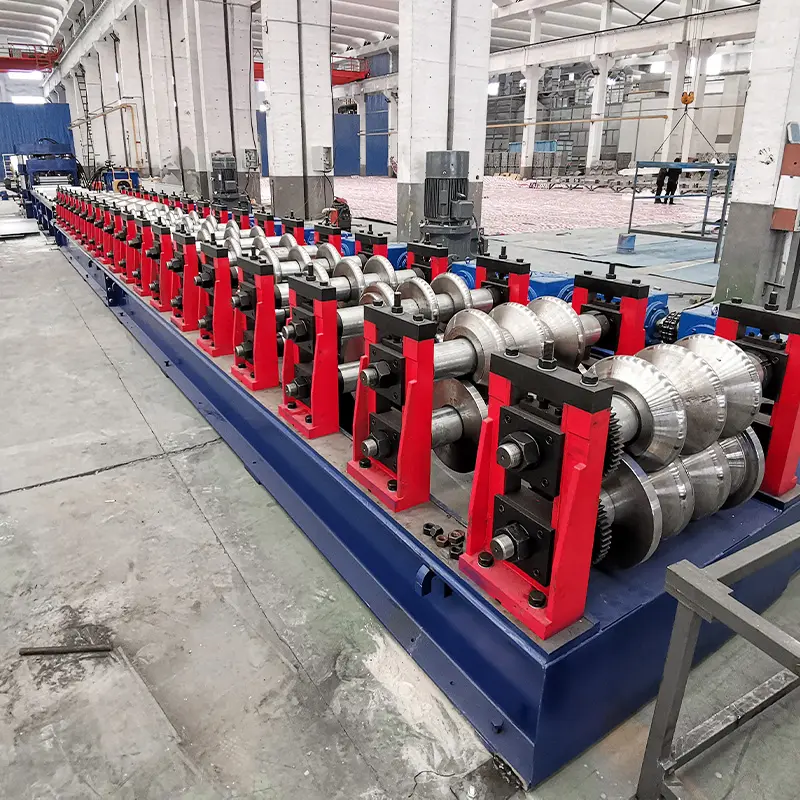

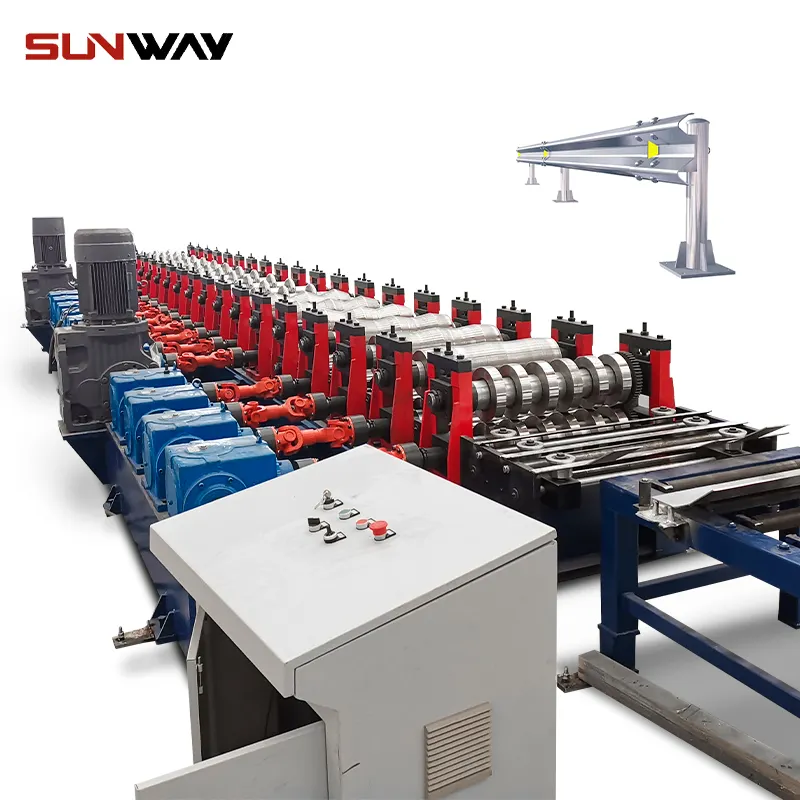

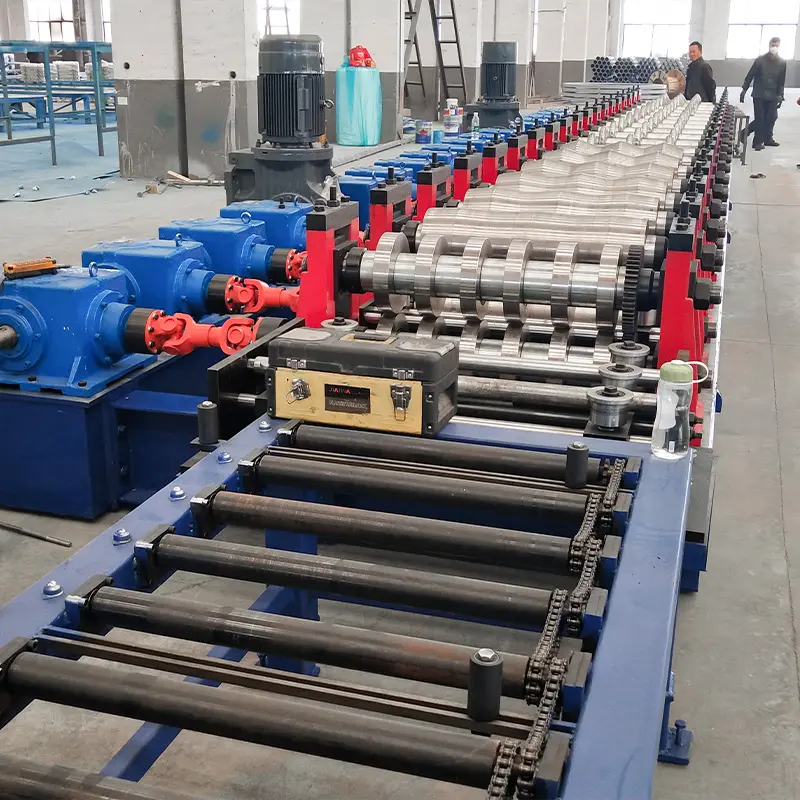

Product Details
Product Parameters
| Highway Guardrail Roll Forming Machine | ||
|
Machinable Material
|
A) Galvanized Steel |
Thickness(MM): 2.5-4.0 mm, Or According To Customer
|
| B) PPGI | ||
| C) Carbon Steel | ||
| Yield Strength | 250 – 550 Mpa | |
| Tensil Stress | G250 Mpa-G550 Mpa | |
| Guard Rail Type | 2 Waves And 3 Waves | |
| Decoiler | Hydraulilc Decoiler | |
| Punching System | Hydraulic Punching Station | * Punching Press (Optional) |
| Forming Station | About 19+8 Stations | * According To Your Profile Drawings |
| Driving System | Gearbox Drive | |
| Machine Structure | Forged Iron Station | |
| Forming Speed | 0-20 (M/MIN) | Not Including Cutting And Punching |
| Rollers’ Material | GCr 15 | * Cr12Mov (Optional) |
| Cutting System | Post-cutting | * Pre-cutting (Optional) |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| PLC Brand | Panasonic | * Siemens (Optional) |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

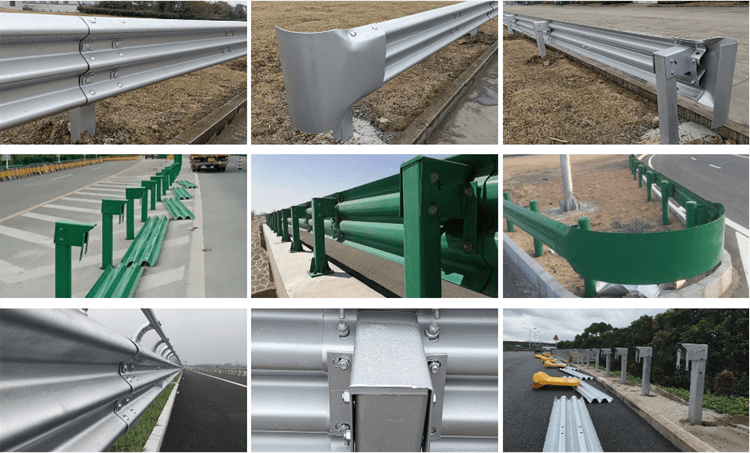

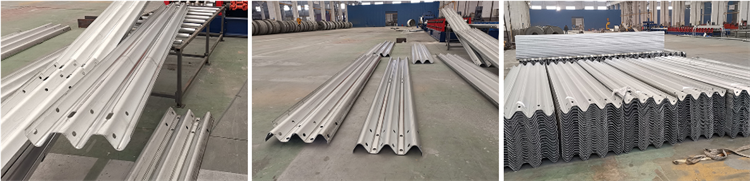

Application
fAQ
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
No, most of our machines are designed according to customers’ specifications, using famous brand components.
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
