Multi Profiles Roll Forming Machine
Multi profiles roll forming machine also named 2 in 1 or 3 in 1 or 4 in 1 etc Purlin Roll Forming Machine is designed to make different profiles on one machine which can save space and cost. With the development of various profiles production requirements, customers prefer to buy one machine but can produce 2 purines or more. Then this machine is the best choice. There is no need to change rollers or cutters once producing different profiles. Meantime, punching unit is also be available for each profile.
Global Service
Our professional foreign traders will satisfy global businessman as customers' will.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
Share This Product
Description
Multi profiles roll forming machine also named 2 in 1 or 3 in 1 or 4 in 1 etc Purlin Roll Forming Machine is designed to make different profiles on one machine which can save space and cost.
With the development of various profiles production requirements, customers prefer to buy one machine but can produce 2 purines or more. Then this machine is the best choice. There is no need to change rollers or cutters once producing different profiles. Meantime, punching unit is also be available for each profile.
SUNWAY makes different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

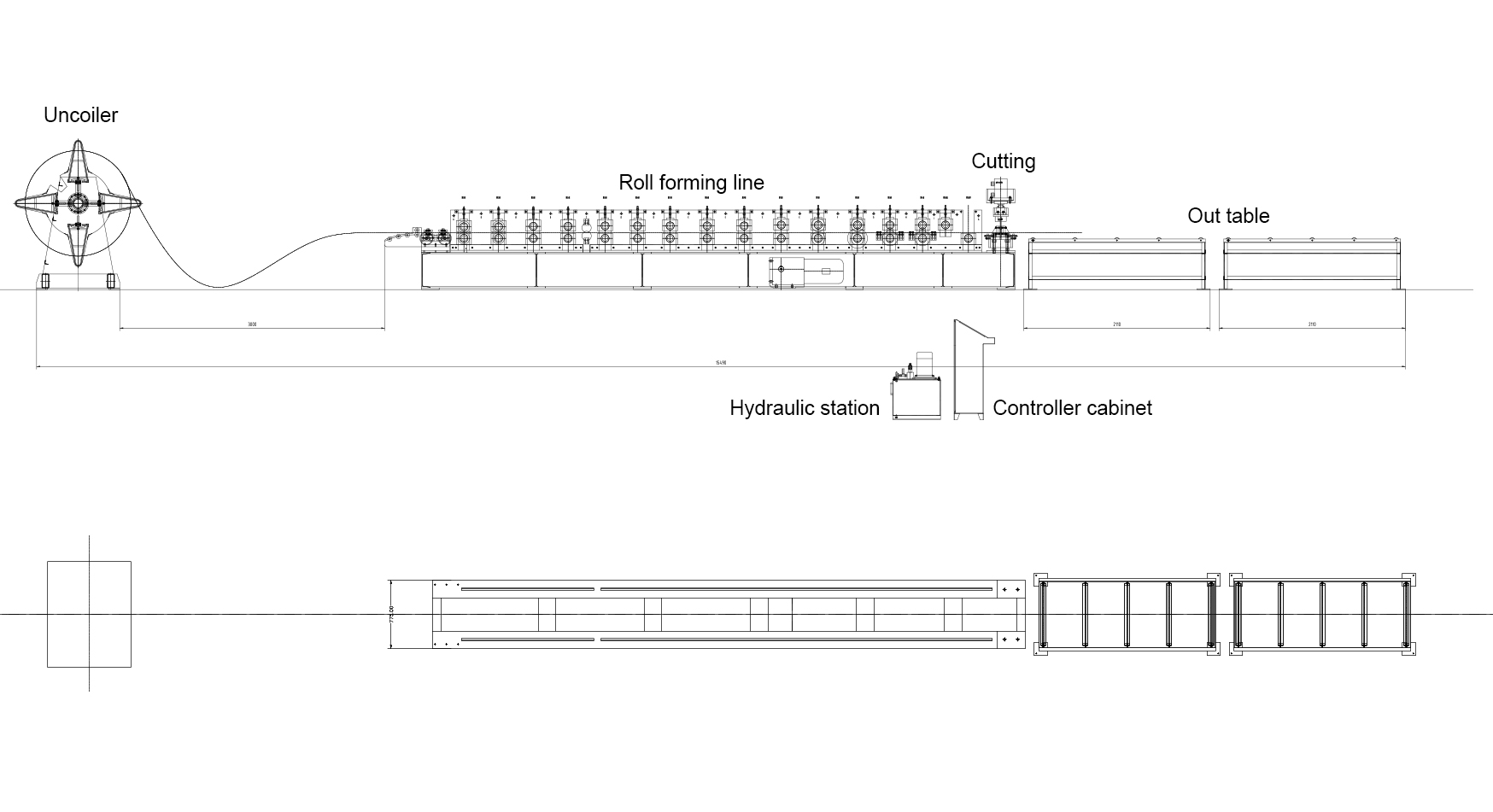

Production Line
Product Details
Product Parameters
| Auto Size Changeable CZ Purlin Roll Forming Machine | ||
|
Machinable Material
|
A) Galvanized Coil |
Thickness(MM): 1.5-3 or as per customer
|
| B) Carbon Steel Coil | ||
| Yield Strength | 250 – 550 Mpa | |
| Tensil Stress | G350 Mpa-G550 Mpa | |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Punching System | Hydraulic Punching Station | * Pre-punch / Post Punch (Optional) |
| Forming Station | As Per Profiles | |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Wall Panel Station | * Forged Iron Station (Optional) |
| Forming Speed | 10-20 (M/MIN) | * Or According To Your Requirement |
| Rollers’ Material | GCr 15 | * Cr12Mov (Optional) |
| Cutting System | Pre-cutting | * Post- universal Cutting (Optional) |
| Profiles | 2 in 1 | * 3 in 1 , 4 in 1 |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| PLC Brand | Panasonic | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |
fAQ
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
No, most of our machines are designed according to customers’ specifications, using famous brand components.
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
