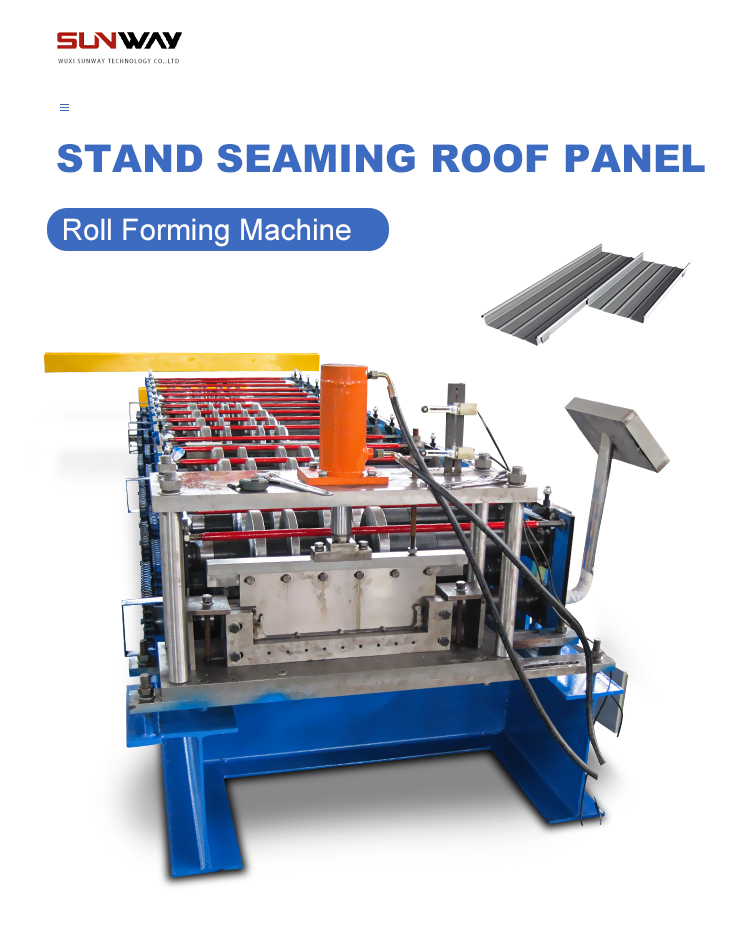

Stand Seaming Roof Panel Roll Forming Machine
Stand seaming roof panel roll forming machine is mainly used to produce roof panels. Normally the panel thickness is 0.3-0.8mm with normal galvanized steel or colored coil. And the most advantage of this kind of roof design is that there is no need of any screws or nails during installation.
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile, glazed tile, metal deck, wall panel, standing seam, K span and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.
Global Service
Our professional foreign traders will satisfy global businessman as customers' will.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
Share This Product
Description
Stand seaming roof panel roll forming machine is mainly used to produce roof panels. Normally the panel thickness is 0.3-0.8mm with normal galvanized steel or colored coil. And the most advantage of this kind of roof design is that there is no need of any screws or nails during installation.
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile, glazed tile, metal deck, wall panel, standing seam, K span and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

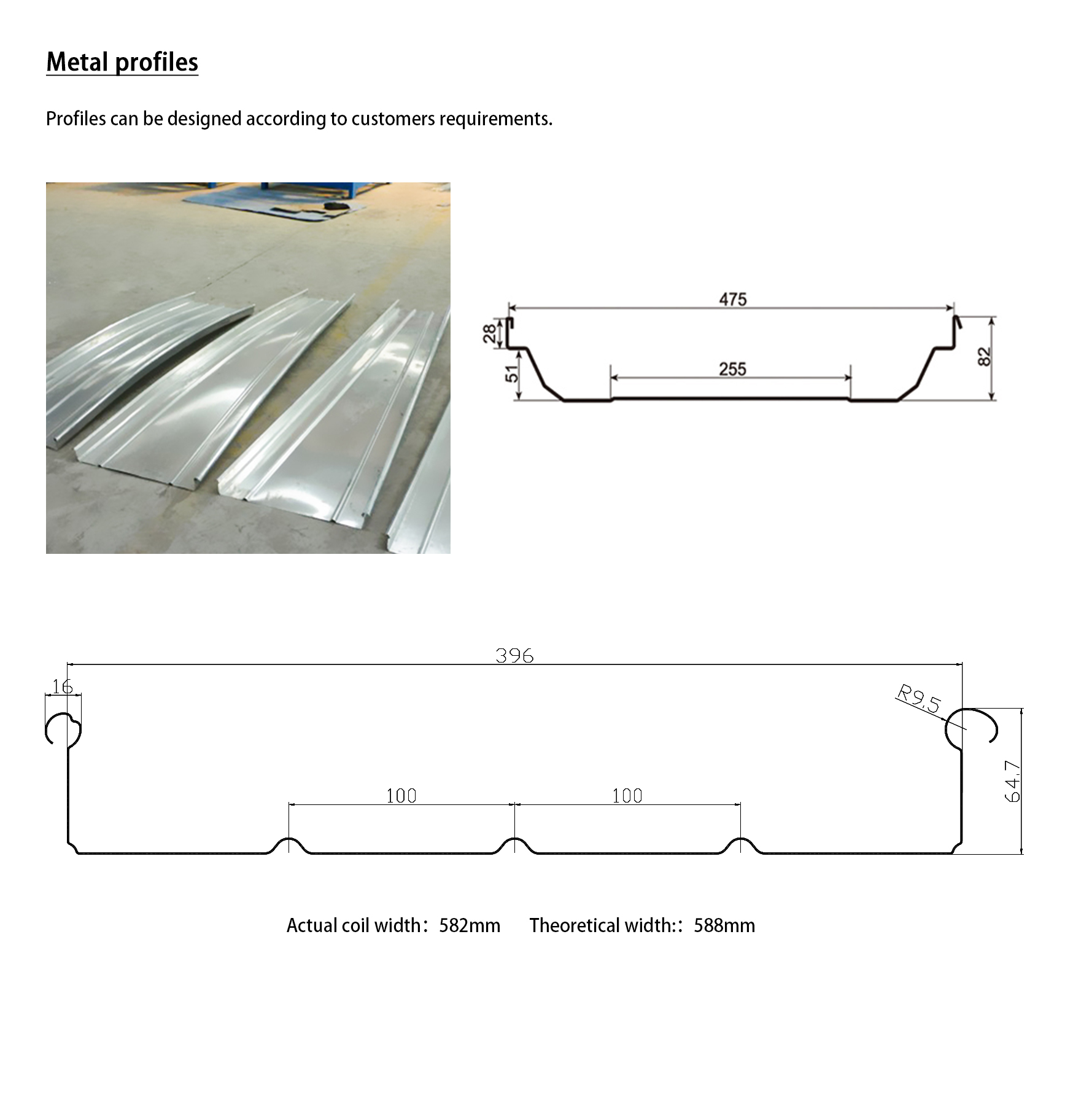

Profile Drawings

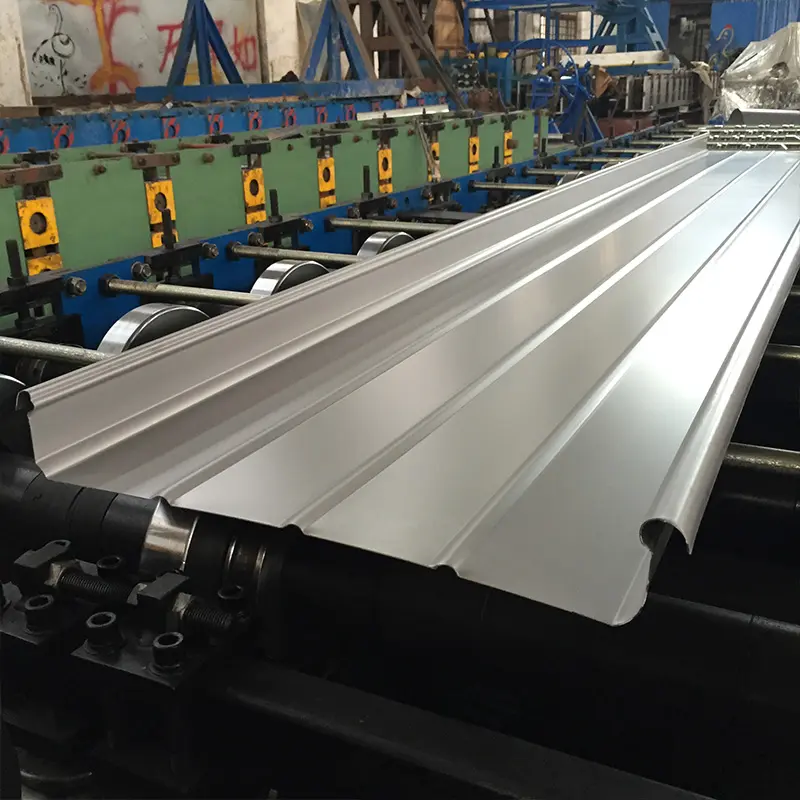

Production Line

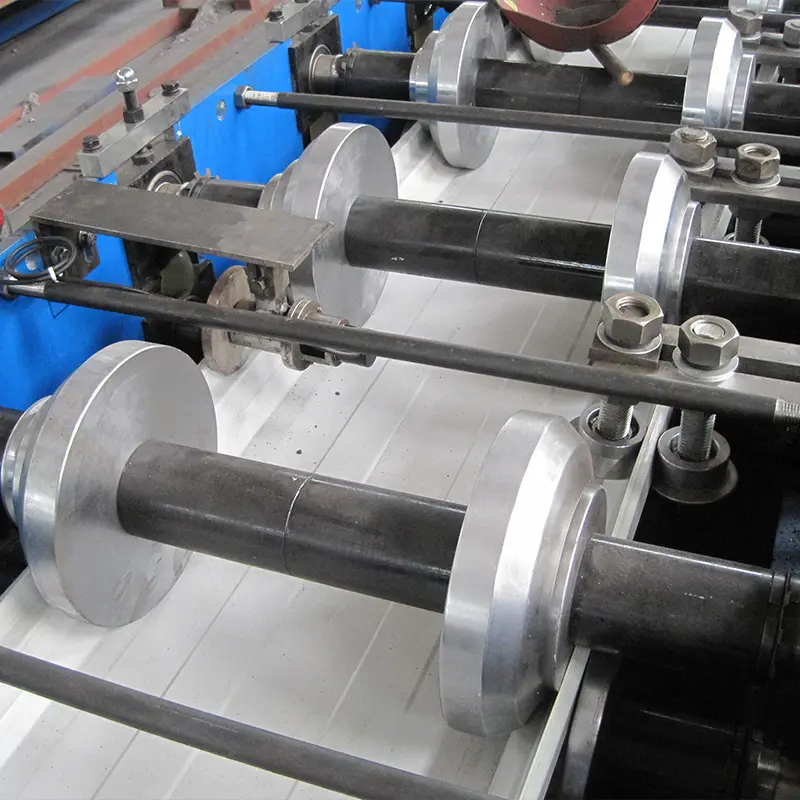

Product Details
Product Parameters
| Stand Seaming Roof Panel Roll Forming Machine | ||
|
Machinable Material
|
A) Galvanized Coil |
Thickness(MM): 0.3-0.8 According To Your Requirement
|
| B) PPGI, PPGL | ||
| Yield Strength | 250 – 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | 500, 600, 610mm etc | |
| Forming Speed | 10-20 (m/min) | * Or According To Your Requirement |
| Forming Station | 18-24 Stations | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Steel Plates Welded | * Cast Iron Stands (Optional) |
| Rollers’ Material | 45# | |

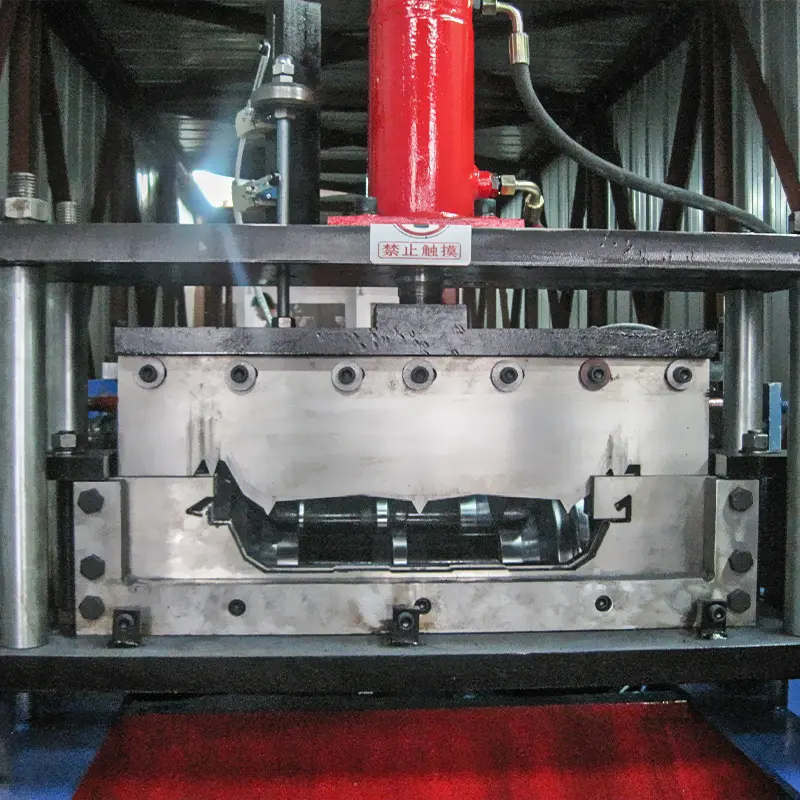

| Cutting System | Hydraulic Post Cut | |
| Seaming Machine | Hand Clamp | Auto Seamer |
| Output Way | Roller Table | |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |
Application
fAQ
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
No, most of our machines are designed according to customers’ specifications, using famous brand components.
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
